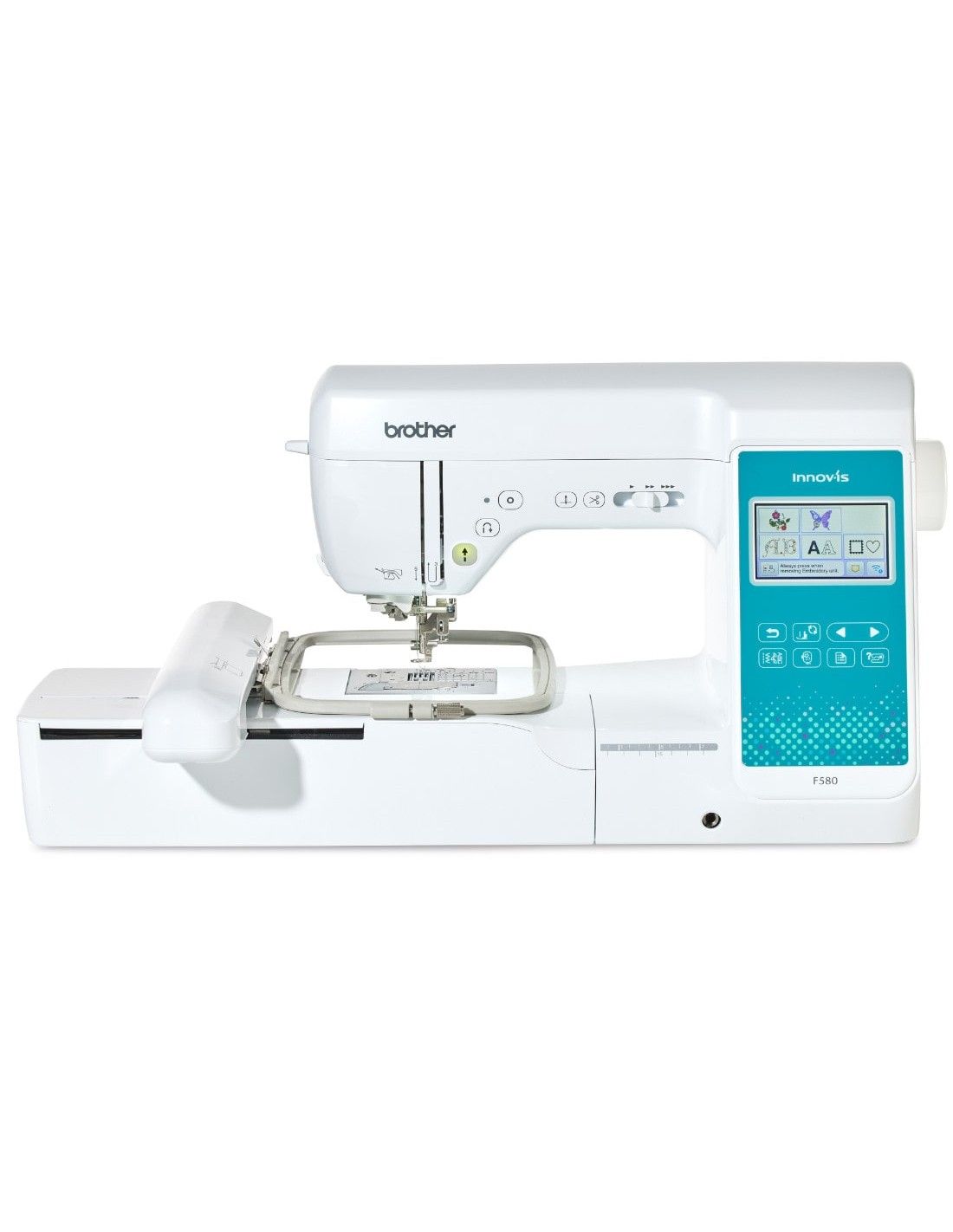

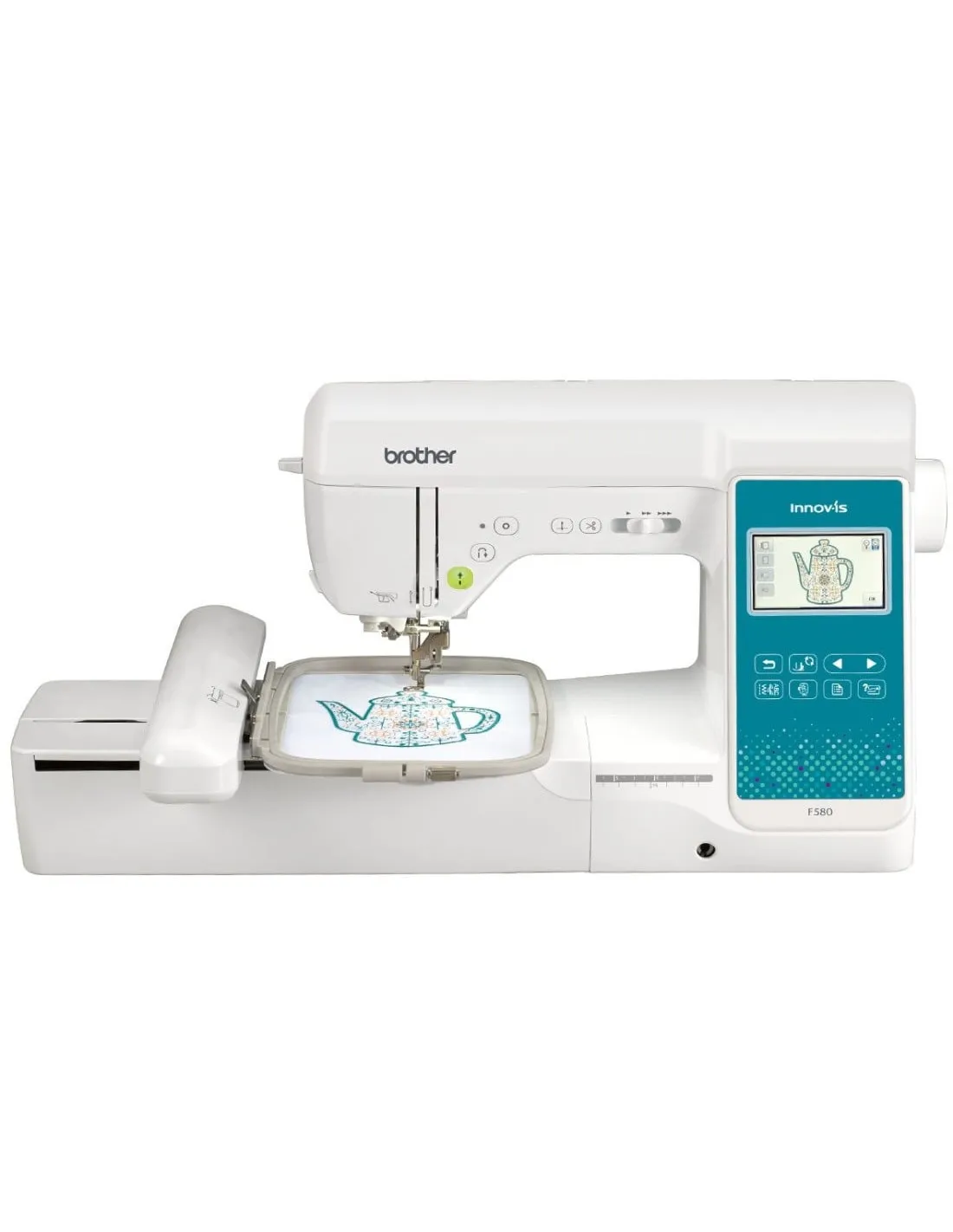

Brother Innov-is F580 Sewing & Embroidery Machine

The Innov-Is F580 has all the qualities to satisfy your embroidery, quilting, home décor and garment making needs.

With so many superb features and superior quality, the F580 is the most capable machine in its price category.

To help you handle any large project, it has a large sewing area and with the built-in presser foot lifter, your projects are much easier to manage as you have total control of the fabric at all times.

The Innovis F580 cuts jump stitches between letters and adds many on-screen design editing and customisation options using the colour touchscreen.

As well as being a capable embroidery tool, it is also a brilliant sewing machine!

Stitch quality is guaranteed by a sturdy and rigid aluminium frame.

This machine will please embroidery enthusiasts, quilters, and seamstresses in general because of its features and functions.

For example, stitch 32 is the "hand quilting stitch" to be used with clear nylon thread for the top thread and the color matching the quilt on the bobbin, this super stitch will give you a hand-sewn finish.

It also has a dash stitch. Use the included serger foot (an attachment that cuts the frayed edge of the fabric as the machine sews) with one of the many stretch overlock stitches available.

There is also a basting setting, stitch number 8 to speed up basting between layers of fabric.

The pressure adjustment of the presser foot allows you to sew wrinkle-free seams even on particularly stretchy fabrics.
No need to avoid “difficult” fabrics anymore.

Plus, the included walking foot will help you tackle projects with multiple layers of fabric with ease.

Sewing

241 stitches, including 10 buttonholes
Sew elegance, with your Innov-is F580 you have 241 utility and decorative stitches at your disposal, including 10 types of buttonholes in a single operation.

5 alphabets included
Words come naturally with 5 fonts at your fingertips.

Stitch Combination
Ability to combine up to 70 stitches and save them in the machine.

Stitch Reference Guide

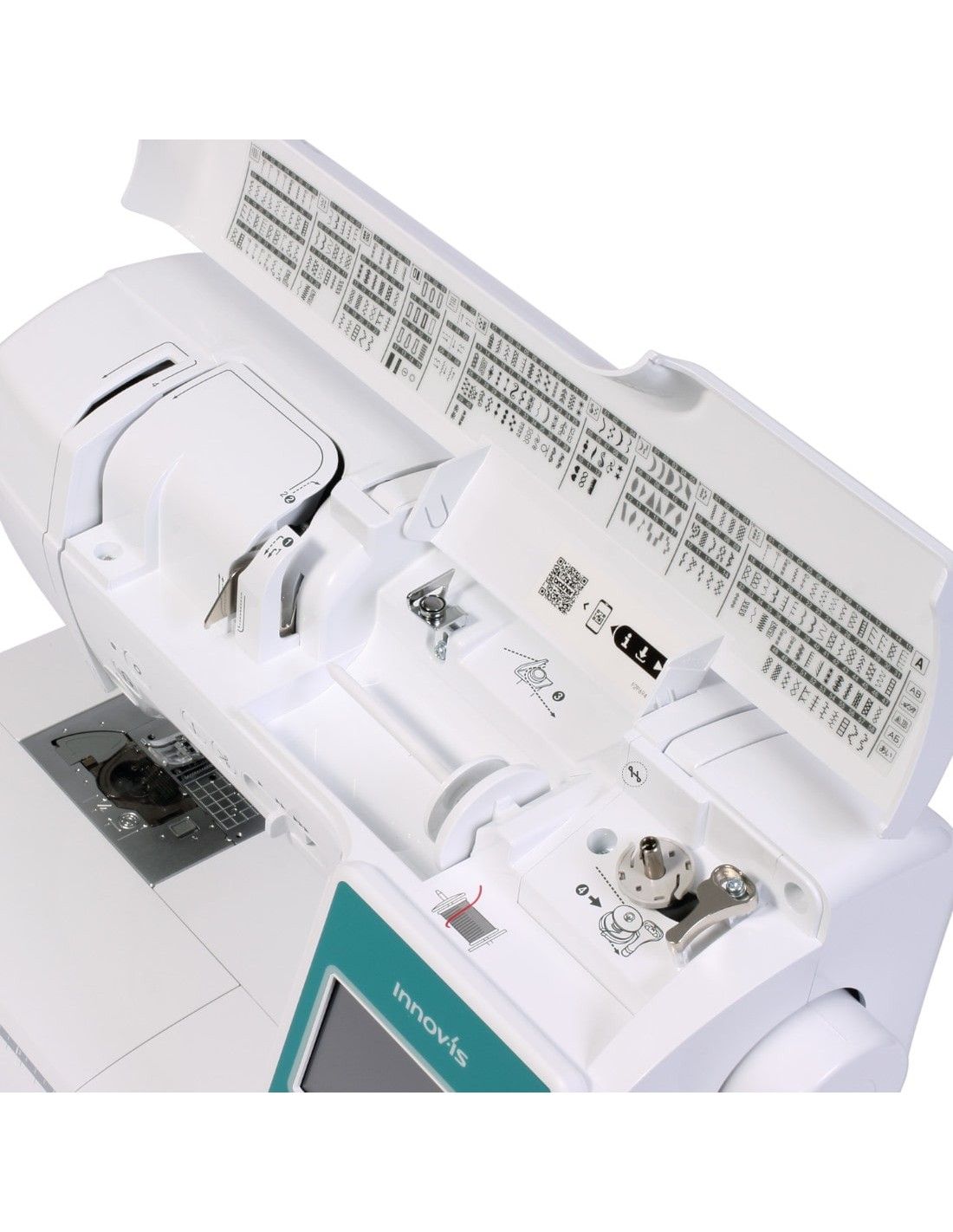

Choose the stitch you need by consulting the table inside the top cover.

My Custom Stitch
Expand your choice even further with My Custom Stitch. Design your own decorative stitches directly on the machine using the colour LCD touchscreen. Save them for use in a variety of projects.

Multi-directional sewing
With four side feed modes, decorative stitches are crisp and precise.

Tie-off stitch button
At the touch of a button, stitches are automatically tied at the beginning or end of a seam.

Speed ​​slider
Adjust the sewing speed from slow to fast. The slider can also be used to adjust the stitch width while sewing.

SFDS: Square Feed Drive System
Ensures smooth, even feed for perfect stitching on any weight of fabric.

Adjustable presser foot pressure
Sew perfectly even on the stretchiest fabrics with simple on-screen electronic adjustment.

Adjustable Thread Tension
Adjusting the upper thread tension allows you to achieve the best results on different fabrics.

Thread Sensor
The Innov-is F580 model is equipped with an upper and lower thread sensor that alerts you when the thread is low or has broken.

Free Arm
Ideal for sewing tubular items such as sleeves, trouser legs etc.

Knee Lift Presser Foot
Using the knee lifter you can raise and lower the presser foot without using your hands.

Driving Foot Included
With the included walking foot and quilting guide, you can tackle multiple-layer quilts with ease, no matter what combination of materials you use to create them.

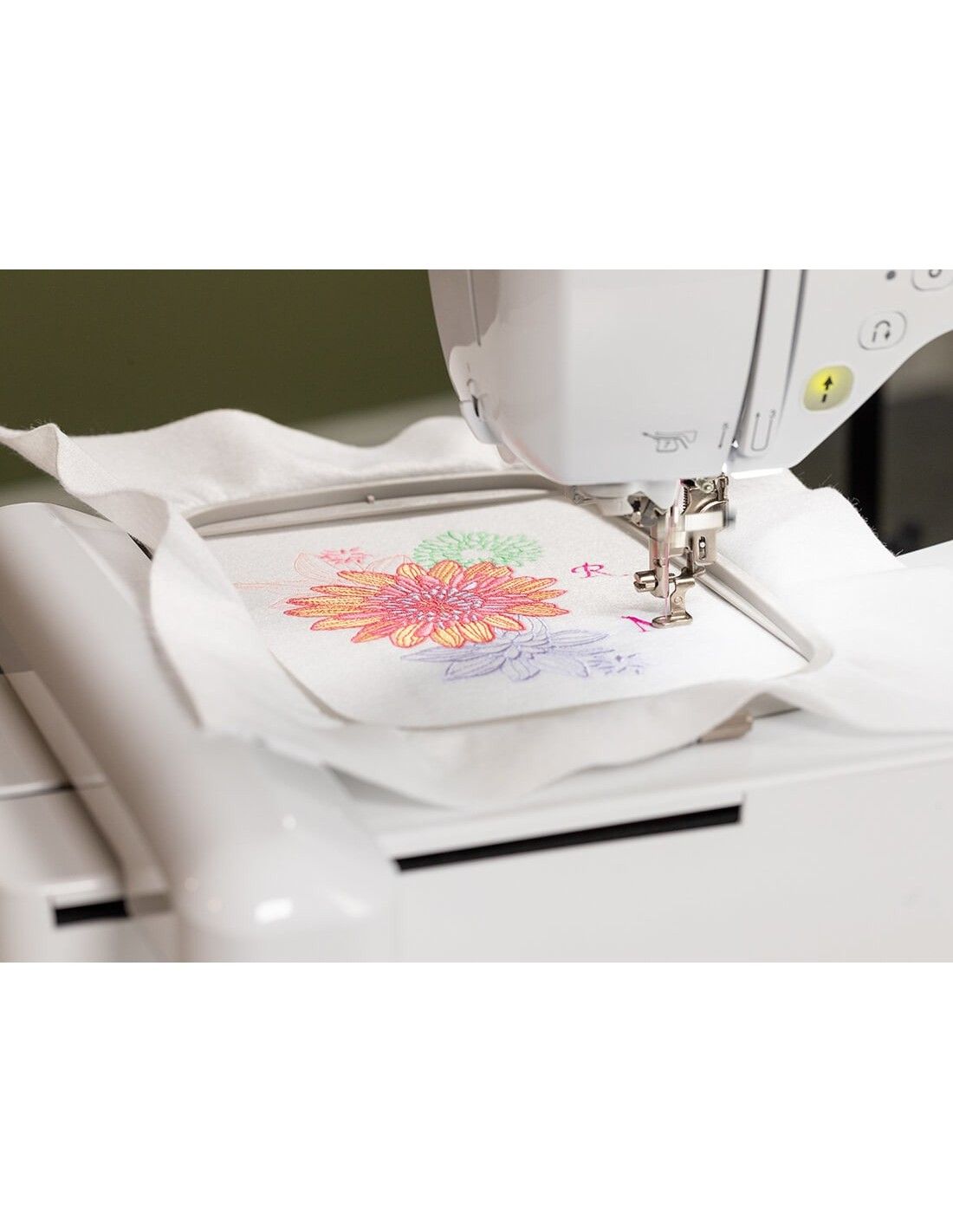

Embroidery

Large embroidery area (180 x 130 mm)
This model has a large embroidery area so you can express your creativity.

193 embroidery designs available
Choose from a wide variety of floral, seasonal, animal and more. With a wide range of embroidery designs available, you can start embroidering straight away!

13 Fonts
Easily personalise your embroidery and sewing projects by choosing from 13 fonts available in 3 sizes.

Artspira
Unleash your inner artist. Design your own embroidery designs or download exclusive Brother designs.

Colour sorting function
Fewer thread changes means more time to create.

Jump stitch trimming
Put away the scissors. Jump stitches are automatically trimmed for you.

Frames
Complete your embroidery with a touch of class by enclosing it in an elegant frame. Choose from 10 frames and 14 stitch types to obtain over 140 combinations. Use the available lettering to create elegant and unique monograms.

Embroidery Editing
With the touch of a button you can resize, rotate or mirror your embroidery.

Combining Embroidery Designs
Allows you to combine embroidery designs or text to add to your project.

Text Editing Features
Add multiple lines of text and align them as you like, left, center or right. Text rotation and font selection are also available from a single editing panel.

USB Port
Connect USB devices, such as a USB flash drive or card reader/writer, and load embroidery designs directly into the machine.

Key Features of the Brother Innov-is F580:

• LCD Colour Touchscreen: A 3.7" display that allows you to easily navigate through the options and view the embroidery designs.
• 193 Embroidery Designs Included: A wide range of pre-installed embroidery designs, with 55 new designs exclusive to this series.
• 13 Embroidery Fonts: Also includes 2 new fonts, to personalise your projects with different texts.
• Automatic Stitch Trimming (Thread Trimmer): For a clean, professional finish.
• Colour Sequence Sorting: Streamlines the embroidery process by changing the order in which the colours are applied.
• Advanced Needle Threading System: Makes it easier to thread the needle.
• Wireless LAN Enabled: Allows for easy transfer of embroidery designs and connection to Artspira, Brother's creative hub.
• Embroidery area: 180 x 130 mm, for generously sized work.
• Advanced needle threading
• 241 stitch types, including 10 buttonholes, plus 5 fonts (in sewing mode)
• 190 mm workspace
• Side feed and SFDS (Square Motion Feed)
• Automatic upper thread tension
• My Custom Stitch
• Hard case

Accessories included:

• Zigzag foot  J  (on machine)
• Monogramming foot  N
• Overcasting foot  G
• Zipper foot  I
• Blind stitch foot  R
• Button fitting foot  M
• Buttonhole foot  A
• Embroidery foot  Q
• Free motion open toe quilting foot  O
• Walking foot
• 1/4" piecing foot
• Quilting guide
• Side cutter  S
• Open toe foot
• Non stick foot
• Stitch guide foot  P
• Adjustable zipper/piping foot
• Needle set
• Twin needle
• Bobbin x 4 (1 bobbin on machine)
• Seam ripper
• Scissors
• Cleaning brush
• Eyelet punch
• Screwdriver (large)
• Screwdriver (small)
• Disc-shaped screwdriver
• Horizontal spool pin
• Spool cap (large)
• Spool cap (medium) x 2 (1 spool cap on machine)
• Spool cap (small)
• Thread spool insert (mini king thread spool)
• Spool net
• Knee lifter
• Standard bobbin case (on machine)
• Alternate bobbin case (no color on the screw)
• Foot controller
• Embroidery frame set (extra large (multi-position)) 30 cm (H)   13 cm (W)
• Embroidery frame set (large) 18 cm (H)   13 cm (W)
• Embroidery bobbin thread (60 weight, white)
• Accessory bag
• Hard case
• Grid sheet set
• Operation Manual
• Quick Reference Guide
• Embroidery Design Guide
